Electroplating is a widely used industrial process that involves the deposition of a metal coating onto a substrate to enhance its properties, such as corrosion resistance, aesthetic appeal, or electrical conductivity. However, this process generates significant volumes of wastewater containing hazardous substances, including heavy metals, acids, alkalis, and organic compounds. Proper treatment of electroplating wastewater is crucial to prevent environmental pollution and comply with regulatory standards. One of the effective technologies employed in this context is the use of wastewater evaporators, which play a pivotal role in reducing wastewater volume and recovering valuable resources.
Electroplating wastewater is characterized by its complex composition, which varies depending on the specific plating processes and chemicals used. Common constituents include:
Heavy Metals: Such as chromium (Cr), nickel (Ni), copper (Cu), zinc (Zn), and lead (Pb).
Acids and Alkalis: Including sulfuric acid, hydrochloric acid, and sodium hydroxide.
Organic Compounds: Such as surfactants, brighteners, and solvents.
Suspended Solids: Particulate matter resulting from the plating process.
If discharged untreated, electroplating wastewater can have severe environmental consequences:
Water Pollution: Contaminants can enter water bodies, affecting aquatic life and water quality.
Soil Contamination: Heavy metals can accumulate in the soil, impacting plant growth and entering the food chain.
Human Health Risks: Exposure to toxic substances can lead to serious health issues, including neurological and developmental disorders.
Conventional methods for treating electroplating wastewater include:
Chemical Precipitation: Adding chemicals to precipitate heavy metals as insoluble compounds.
Ion Exchange: Using resins to exchange undesirable ions in the wastewater with more benign ones.
Filtration: Removing suspended solids through physical barriers.
Neutralization: Adjusting pH levels to neutralize acidic or alkaline wastewater.
While these methods can be effective, they often generate secondary waste streams and may not achieve the desired level of contaminant removal.
Electrocoagulation involves the application of an electric current to wastewater, causing the dissolution of sacrificial electrodes (usually iron or aluminum) and the subsequent formation of coagulants that remove contaminants. This method is effective in removing heavy metals, suspended solids, and organic compounds.
Membrane technologies, such as microfiltration, ultrafiltration, nanofiltration, and reverse osmosis, are employed to separate contaminants based on size and charge. These methods can achieve high levels of purification but may be susceptible to fouling and require regular maintenance.
Wastewater evaporators are thermal systems that concentrate wastewater by evaporating the water content, leaving behind a reduced volume of concentrated waste. This technology is particularly effective for treating electroplating wastewater due to its ability to handle high concentrations of contaminants and reduce disposal volumes significantly.
Wastewater evaporators operate by heating the wastewater to its boiling point, causing the water to vaporize. The vapor is then condensed and collected as distilled water, while the remaining concentrated waste is collected separately. This process effectively reduces the volume of hazardous waste and allows for the potential reuse of the distilled water.
There are several types of wastewater evaporators used in electroplating wastewater treatment:
| Type | Description | Advantages |
|---|---|---|
| Thermal Evaporators | Use direct heat sources to evaporate water. | Simple design, effective for small to medium volumes. |
| Mechanical Vapor Recompression (MVR) Evaporators | Compress and reuse the vapor to provide heat, improving energy efficiency. | Lower energy consumption, suitable for large volumes. |

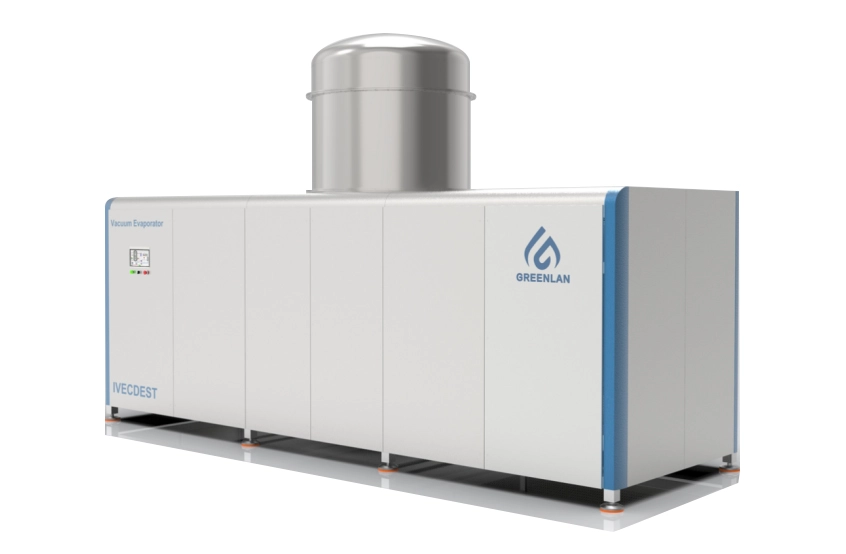

| Vacuum Evaporators | Operate under reduced pressure to lower boiling points. | Energy-efficient, suitable for heat-sensitive materials. |
Volume Reduction: Can reduce wastewater volume by up to 98%, significantly lowering disposal costs.
Resource Recovery: Enables the recovery of valuable metals and the reuse of distilled water in the process.
Compliance with Regulations: Achieves high levels of contaminant removal, ensuring compliance with environmental standards.
Operational Efficiency: Automated systems require minimal operator intervention and maintenance.
Implementing wastewater evaporators involves initial capital investment and operational costs. However, the long-term savings from reduced disposal fees, resource recovery, and compliance with regulations often outweigh the initial expenses. Additionally, the potential for water reuse contributes to overall sustainability and cost-effectiveness.
