How Does A Vacuum Evaporator Work​

Views: 0     Author: Site Editor     Publish Time: 2025-05-19      Origin: Site

Inquire

wechat sharing button
line sharing button
twitter sharing button
facebook sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Have you ever wondered how industries manage to concentrate liquids and recover solvents so efficiently? The answer lies in vacuum evaporators—devices that play a crucial role in processes like solvent recovery and wastewater treatment. By lowering the boiling point of liquids, these systems allow for faster evaporation at lower temperatures, preserving heat-sensitive materials.

In this post, we’ll explain how a vacuum evaporator works and explore its applications across industries. You'll learn about its components, benefits, and how it contributes to sustainability and cost savings.


What is a Vacuum Evaporator?

vacuum evaporator is a specialized device designed to remove water or solvents from a liquid by reducing the surrounding air pressure. This reduction in pressure lowers the boiling point of the liquid, which enables it to evaporate at lower temperatures than under normal atmospheric conditions. The vacuum evaporator process is particularly beneficial when dealing with heat-sensitive materials, as it allows for evaporation without subjecting them to damaging high temperatures.

Key Components of a Vacuum Evaporator

vacuum evaporator consists of several key components, each serving a specific purpose to ensure the efficient evaporation of liquids:

  1. Vacuum Pump: This is the central component that creates the low-pressure environment. By reducing the pressure inside the system, the vacuum pump lowers the boiling point of the liquid, thus facilitating evaporation at a much lower temperature than under normal atmospheric conditions.

  2. Boiling Chamber: The liquid is heated inside the boiling chamber. As the pressure decreases, the liquid reaches its boiling point faster, turning into vapor. This chamber is designed to maintain the liquid in a heated state, promoting effective evaporation.

  3. Condenser/Heat Exchanger: After the liquid evaporates, the vapor is directed into the condenser or heat exchanger. Here, the vapor is cooled down and condensed back into liquid form. This condensed liquid can be collected for reuse or disposal.

  4. Energy Source: The energy source in a vacuum evaporator provides the heat required to facilitate evaporation. This can come from various sources, such as thermal energy, electron-beam heating, or flash-based heating, depending on the system's design and the nature of the liquid being processed.


vacuum evaporator

How Does a Vacuum Evaporator Work? Step-by-Step Process

The process of vacuum evaporation involves several steps, all of which contribute to the efficient and cost-effective removal of solvents from liquids. Here’s a step-by-step breakdown of how a vacuum evaporator works:

Step 1: Creating the Vacuum Environment

The first step in the vacuum evaporator process is the creation of a low-pressure environment. The vacuum pump reduces the air pressure inside the system, which leads to a significant drop in the boiling point of the liquid. By lowering the pressure, the liquid can boil at much lower temperatures, which is especially useful for heat-sensitive substances that would otherwise degrade under high heat.

Step 2: Heating the Liquid in the Boiling Chamber

Once the vacuum is established, the liquid is introduced into the boiling chamber, where it is heated. The heat causes the liquid to vaporize, but since the boiling point has been lowered due to the vacuum, this happens at a much lower temperature. This is particularly beneficial for preserving the integrity of the liquid’s components, such as in pharmaceuticals, food processing, and chemical applications, where high temperatures can cause degradation.

Step 3: Evaporation and Vaporization

As the liquid is heated, it reaches its boiling point under the reduced pressure, and the liquid begins to evaporate. The process occurs faster than under atmospheric conditions, and because of the lower temperatures, the materials being evaporated are less likely to be thermally degraded. The vacuum evaporator ensures that even volatile solvents or heat-sensitive compounds remain stable throughout the evaporation process.

Step 4: Condensation and Collection of the Vapor

After the liquid has evaporated, the vapor moves into a condenser or heat exchanger, where it is cooled and converted back into liquid form. The condenser allows the vapor to lose heat and return to a liquid state, ensuring that it can be collected for further use or disposal. This step is crucial for recovering valuable solvents or water, making the vacuum evaporator an essential tool in industries like chemical manufacturing and pharmaceutical production.

Step 5: Final Concentrate and Disposal

The remaining liquid in the boiling chamber is now concentrated, often containing unwanted contaminants or solutes. This concentrate can be treated further, either through additional purification steps or by being safely disposed of, depending on the application. The condensed liquid, which is often purified water or a recovered solvent, is collected and may be reused in the process, contributing to sustainability efforts.


The Benefits of Vacuum Evaporation

The use of vacuum evaporators offers several significant benefits that make them highly desirable for a range of industries. These advantages include energy efficiency, the preservation of heat-sensitive materials, faster processing times, and reduced solvent waste. Let’s explore these benefits in more detail:

Energy Efficiency and Cost-Effectiveness

One of the key advantages of vacuum evaporation is its energy efficiency. By operating at lower temperatures, vacuum evaporators consume significantly less energy compared to traditional evaporation methods. Lower boiling points mean less heat is required to achieve the same level of evaporation. This is especially valuable in large-scale operations where energy costs can quickly add up. Additionally, because vacuum evaporators recycle solvents for reuse, they help reduce overall costs.

Protection of Heat-Sensitive Materials

Many materials, especially those in the pharmaceutical, food, and cosmetic industries, are highly sensitive to heat. Traditional evaporation methods can degrade these materials, resulting in a loss of product quality. Vacuum evaporators, on the other hand, allow for evaporation at much lower temperatures, preserving the integrity of heat-sensitive compounds. This makes vacuum evaporators indispensable for applications where maintaining product quality is essential.

Faster and More Efficient Process

The vacuum evaporation process is faster than conventional evaporation methods. By reducing the boiling point of the liquid, evaporation occurs more quickly, leading to higher throughput. This is particularly advantageous in industries that require high-volume processing, such as chemical production, food manufacturing, and wastewater treatment. The faster evaporation rates can help companies meet production goals while improving overall efficiency.

Reduced Waste and Solvent Usage

In industries like pharmaceuticals and chemicals, solvent recovery is an essential part of the process. Vacuum evaporators help reduce solvent waste by enabling the efficient recovery and recycling of solvents. This reduces the need for new solvents, lowering both operational costs and the environmental impact of waste disposal. For industries focused on sustainability, vacuum evaporation is a valuable solution.


Applications of Vacuum Evaporation Across Industries

Vacuum evaporators are used in a wide range of applications across various industries. Their versatility and efficiency make them indispensable for many businesses looking to optimize their processes. Here are some key applications of vacuum evaporators:

Laboratory Applications

In laboratories, vacuum evaporators are commonly used to concentrate samples for analytical methods like high-performance liquid chromatography (HPLC) and gas chromatography-mass spectrometry (GC-MS). These methods often require concentrated samples to improve detection limits and accuracy. The ability to evaporate solvents at lower temperatures ensures that the samples retain their integrity during the process.

Wastewater Treatment

One of the most significant applications of vacuum evaporators is in wastewater treatment. These systems are used to reduce the volume of wastewater by evaporating water at lower temperatures. This process concentrates the contaminants, making it easier to handle or dispose of the waste. Moreover, the condensed water can often be recovered and reused, promoting sustainability and reducing water consumption in industrial processes.

Chemical and Pharmaceutical Manufacturing

In the chemical and pharmaceutical industries, vacuum evaporators are used for solvent recovery and the concentration of active pharmaceutical ingredients (APIs). These systems allow for efficient solvent recovery, which can be recycled for future use. This helps reduce waste and costs associated with solvent disposal. In pharmaceutical manufacturing, vacuum evaporation is particularly valuable for purifying ingredients without subjecting them to harmful temperatures.

Food and Beverage Industry

The food and beverage industry also benefits from vacuum evaporators. These systems are used to concentrate flavors, juices, and extracts without compromising the quality of the ingredients. The low temperature process preserves the natural flavors, colors, and nutrients of the products, making it ideal for food products that need to retain their fresh qualities.


Common Types of Vacuum Evaporators and Their Functions

There are various types of vacuum evaporators, each designed for specific applications. The choice of vacuum evaporator depends on factors such as the volume of liquid to be processed, the nature of the liquid, and the scale of operations. Below are some common types of vacuum evaporators:

Rotary Evaporators

Rotary evaporators are commonly used in laboratories for solvent removal. The rotating flask increases the surface area for evaporation, making the process more efficient. This type of evaporator is ideal for handling small volumes of liquids and is often used in chemical, pharmaceutical, and environmental testing laboratories.

Large-Scale Vacuum Evaporators

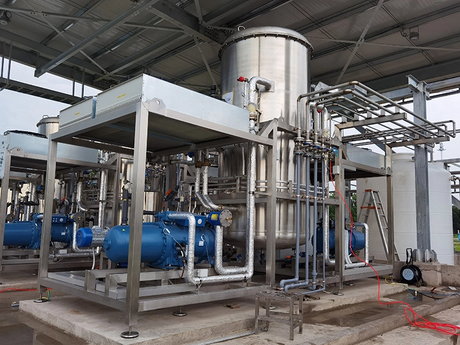

Large-scale vacuum evaporators are used for industrial applications, such as food processing, chemical production, and wastewater treatment. These systems are designed to handle larger volumes of liquids and operate continuously, making them ideal for high-throughput processes.

Centrifugal Evaporators

Centrifugal evaporators use a combination of vacuum, heat, and centrifugal force to quickly evaporate solvents. These systems are typically used in high-throughput applications where multiple samples need to be processed simultaneously.

Falling Film Evaporators

Falling film evaporators are ideal for continuous evaporation processes. The liquid flows down a heated surface in a thin film, which facilitates rapid evaporation under vacuum conditions. This type of evaporator is commonly used in large-scale industrial applications like food and beverage manufacturing.

Freeze Dryers

Freeze dryers, also known as lyophilizers, use vacuum evaporation to sublimate frozen solvents directly from the solid to the gas phase. This method is essential for drying heat-sensitive materials like biological samples and pharmaceuticals, as it allows for drying without exposing the materials to heat.


Key Considerations When Using a Vacuum Evaporator

To maximize the efficiency of a vacuum evaporator, there are several important factors to consider:

Equipment Selection

Choosing the right vacuum evaporator is crucial for achieving the desired results. Factors such as the volume of liquid, the nature of the liquid, and the application requirements should guide the selection of the evaporator.

Vacuum Pump and System Maintenance

Regular maintenance of the vacuum pump and other system components is essential to ensure long-term performance. Proper care prevents wear and tear, ensuring that the system remains efficient and cost-effective.

Temperature and Pressure Control

Precise control over temperature and pressure is critical to achieving optimal evaporation rates. Proper settings help to avoid inefficient processes and ensure that the evaporator operates within its intended parameters.

Safety Precautions

When handling volatile solvents, safety precautions are essential. Always use the appropriate containment measures, ventilation, and protective gear to prevent accidents and ensure safe operation.


How Vacuum Evaporators Benefit Your Industry

The use of vacuum evaporators can offer numerous advantages for industries seeking to optimize their operations:

Improved Product Quality and Consistency

By operating at lower temperatures, vacuum evaporators preserve the quality of heat-sensitive products, ensuring that they remain consistent in quality and performance.

Environmental Impact

With their energy efficiency and solvent recovery capabilities, vacuum evaporators contribute to reducing environmental impacts. By recycling solvents and reducing energy consumption, they help companies operate more sustainably.

Cost-Saving Opportunities

The ability to recover solvents and reduce energy costs provides significant savings over time. Vacuum evaporators are a valuable investment that can help companies reduce operational costs while improving efficiency.


Conclusion

In conclusion, vacuum evaporators are essential in various industries, offering energy-efficient, cost-effective solutions. They excel in solvent recovery, sample concentration, and wastewater treatment. Understanding how a vacuum evaporator works helps businesses improve product quality, speed up processes, and minimize environmental impact. As the need for sustainable technologies grows, vacuum evaporators will play a larger role across industries. Greenlan offers high-quality vacuum evaporators—contact us for more information.


FAQs

Q: What is a vacuum evaporator?

A: A vacuum evaporator is a device that reduces the pressure around a liquid, lowering its boiling point and allowing it to evaporate at lower temperatures. This is especially useful for heat-sensitive materials, as it prevents degradation during the evaporation process.

Q: How does vacuum evaporation save energy?

A: By operating at lower temperatures, vacuum evaporators reduce energy consumption compared to traditional evaporation methods. The lower boiling point means less heat is required to achieve evaporation, making the process more energy-efficient.

Q: What industries use vacuum evaporators?

A: Vacuum evaporators are used in various industries, including pharmaceuticals for solvent recovery, food and beverage for concentrating flavors, and chemical manufacturing. They are also crucial in wastewater treatment, where they help reduce the volume of contaminated water.

Q: What are the benefits of vacuum evaporators?

A: Vacuum evaporators offer energy efficiency, faster processing times, and better preservation of heat-sensitive materials. They also help reduce waste by enabling solvent recovery, which contributes to cost savings and sustainability.
