GREENLAN Disc Film Dryer in Water Treatment: A Comprehensive Guide

Views: 0     Author: Site Editor     Publish Time: 2025-05-16      Origin: Site

Inquire

wechat sharing button
line sharing button
twitter sharing button
facebook sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

In the realm of industrial wastewater treatment, the Disc Film Dryer stands out as a highly efficient and sustainable solution. This technology is particularly adept at handling challenging wastewater streams characterized by high salinity, chemical oxygen demand (COD), and organic content. By employing a thin-film evaporation process, the Disc Film Scraper Dryer facilitates the rapid removal of water, leaving behind minimal solid waste. This article delves into the core features, revolutionary advantages, and diverse applications of the Disc Film Dryer, highlighting its significance in modern water treatment processes.

Key Components of a Disc Film Dryer

The Disc Film Dryer operates with several critical components that facilitate its efficient wastewater treatment and waste drying process. Below is a breakdown of the primary components:

  1. Drying Discs
    These discs are the heart of the Disc Film Dryer, where the evaporation takes place. The discs rotate and allow the wastewater to form a thin film over their surface. This increases the contact area for heat transfer and promotes rapid evaporation of water.

  2. Feed Pipe
    The feed pipe is where the wastewater is introduced into the system. This pipe directs the liquid onto the drying discs, where it spreads out evenly to maximize evaporation efficiency.

  3. Heat Source (Steam or Heat Transfer Fluid)
    Heat is provided through the hollow center of the discs. Steam or other heat transfer fluids flow through the discs, raising their temperature. This indirect heating causes the liquid on the discs to evaporate, leaving behind concentrated waste or solids.

  4. Circulating Slot and Circulating Pump
    These components help regulate the flow of heat transfer fluid (like steam or thermal oil) within the system. The circulating pump ensures that the fluid is continually circulating through the discs, maintaining a steady temperature. The circulating slot provides an efficient pathway for the fluid.

  5. Scraper
    The scraper is a crucial component that removes the dried waste from the surface of the discs. After the water has evaporated, solid waste accumulates on the discs. The scraper ensures that this residue is continuously removed and directed to the discharge system.

  6. Drying Waste Collection Bin
    The collected waste, after it has been scraped off the drying discs, is directed to the drying waste collection bin. This component ensures the processed waste is stored safely for further handling or disposal.

How Does a Disc Film Dryer Work?

The Disc Film Dryer operates through a combination of heat transfer, evaporation, and mechanical scraping. Here is an overview of the operational process:

  1. Introduction of Wastewater
    Wastewater is pumped through the feed pipe and onto the rotating discs. This liquid forms a thin film on the surface of the discs, optimizing the area available for evaporation.

  2. Heating Process
    As the discs rotate, heat (usually steam) is supplied through the hollow center of each disc. The heat causes the water in the wastewater to evaporate, leaving behind concentrated solids. The controlled heating temperature (usually around 40°C) ensures that the evaporation process is energy-efficient.

  3. Evaporation of Water
    As the liquid spreads across the disc, it evaporates due to the heat, transforming into water vapor. The evaporated water rises to the top of the system and is carried away by a vacuum or induced draft fan.

  4. Removal of Solid Waste
    The remaining solids, now concentrated, adhere to the disc's surface. As the disc continues to rotate, a scraper moves along the disc’s surface, removing the dry waste and directing it to the collection bin.

  5. Efficient Wastewater Treatment
    The process not only concentrates the wastewater but also produces distilled water with a reduced Chemical Oxygen Demand (COD), often down to 99% reduction. This water is clear and can be reused or safely discharged.

  6. Continuous Process
    The process is continuous, with wastewater being constantly pumped into the system, heated, evaporated, and the remaining waste scraped off. The Disc Film Dryer can handle large volumes of wastewater while ensuring a high efficiency of water removal and waste treatment.

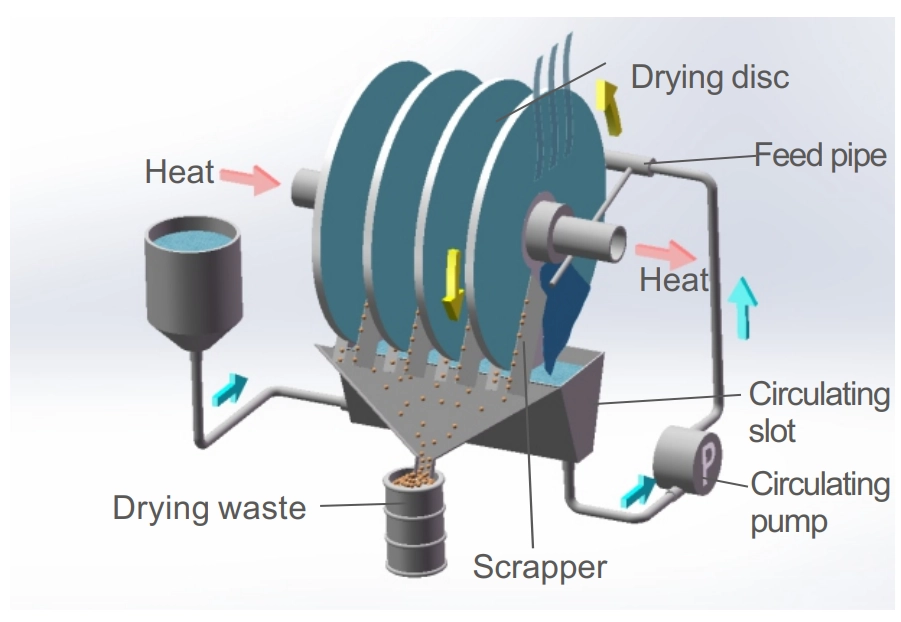

Disc Film Scraper Dryer Working Principle

Core Features of the Disc Film Dryer

The Disc Film Dryer offers several distinctive features that contribute to its effectiveness in treating challenging wastewater streams. These features ensure high performance, energy efficiency, and sustainable operation across various industries:

  1. Advanced Evaporation Technology
    The Disc Film Dryer leverages a thin-film evaporation method, where wastewater forms a thin layer across the surface of rotating discs. This approach maximizes the surface area for heat transfer, significantly enhancing the evaporation rate. This process ensures that large volumes of wastewater can be treated quickly and efficiently.

  2. Continuous Operation and Self-Cleaning Mechanism
    The Disc Film Dryer operates in a continuous cycle, enabling it to process wastewater non-stop. The self-cleaning function, driven by the rotating scraper, ensures that the disc surface remains free of debris and solids, optimizing the drying process and maintaining consistent performance without the need for manual intervention.

  3. Customization for Varying Wastewater Types
    The design of the Disc Film Dryer allows for flexibility in processing various types of wastewater. Whether the wastewater is high in salinity, organic content, or chemical oxygen demand (COD), the system can be tailored to address these challenges, delivering high-quality treated water regardless of the specific characteristics of the wastewater.

  4. Compact, Space-Saving Design
    With a compact footprint, the Disc Film Dryer requires significantly less space than traditional evaporators. This feature is particularly advantageous for industries with limited space for installation, offering a highly efficient solution without requiring a large operational area.

  5. High Operational Safety Standards
    Constructed using durable, corrosion-resistant materials such as 316L stainless steel and titanium, the Disc Film Dryer operates safely under demanding conditions. Its robust design ensures long-term reliability, reducing the need for frequent maintenance or parts replacement, even in highly corrosive environments.

  6. High Performance in High-Salinity Environments
    The Disc Film Dryer is particularly effective in processing wastewater that contains high levels of salts or other challenging substances. Its ability to handle such waste without compromising efficiency makes it ideal for industries dealing with brine solutions, such as the chemical and oil and gas sectors.

Revolutionary Advantages

The Disc Film Dryer offers several revolutionary advantages that make it an optimal choice for industrial wastewater treatment, offering benefits in energy use, operational efficiency, and sustainability:

  1. Superior Thermal Efficiency
    Compared to traditional evaporators, the Disc Film Dryer achieves superior thermal efficiency. By utilizing a low-temperature vacuum evaporation process, it operates at much lower temperatures (around 40°C), which enhances energy efficiency and minimizes the loss of thermal energy during the evaporation process. This significantly reduces energy costs and environmental impact.

  2. Scalable and Adaptable Capacity
    The unique disc structure of the Disc Film Dryer allows for easy scalability, providing unlimited capacity expansion without requiring major redesigns. As operational demands grow, additional discs can be integrated into the system, effectively increasing the throughput and maintaining performance without sacrificing efficiency.

  3. Reduction in Operational Costs
    Thanks to its high energy efficiency ratio, the Disc Film Dryer minimizes operational costs compared to conventional evaporators. The system is designed to require less heat input while maintaining high evaporation rates, directly translating into lower energy bills and reduced operational expenditure over time.

  4. Enhanced Wastewater Concentration
    One of the Disc Film Dryer’s standout advantages is its ability to concentrate wastewater efficiently. This makes it possible to achieve near-solid waste concentrations while producing clear, distilled water. The high COD reduction (up to 99%) ensures that the treated water meets environmental discharge standards or can be reused for other purposes.

  5. Minimal Maintenance and Downtime
    The Disc Film Dryer is designed with durability and ease of maintenance in mind. The continuous self-cleaning mechanism, combined with the robust construction of its components, ensures that the system requires minimal maintenance, leading to lower downtime and increased productivity.

  6. Versatility in Handling Complex Waste Streams
    The Disc Film Dryer excels in handling a wide range of wastewater streams, including those with high organic matter, salts, and ammonia nitrogen. Its versatility in processing complex waste materials without additional pre-treatment steps makes it an invaluable tool for industries such as chemical manufacturing, pharmaceutical production, and municipal wastewater treatment.

  7. Environmental Sustainability
    By reducing energy consumption, increasing the efficiency of wastewater treatment, and minimizing the need for chemical additives, the Disc Film Dryer contributes to a more sustainable approach to wastewater management. The high-quality distilled water it produces can often be reused in various industrial processes, further reducing the overall environmental footprint.

By incorporating these revolutionary advantages, the Disc Film Dryer not only provides exceptional performance but also delivers a long-term, sustainable solution to industrial wastewater treatment challenges. These benefits ensure its place as an essential tool in industries seeking to balance efficiency with environmental responsibility.

Application Areas

The Disc Film Dryer is versatile and finds applications across various industries:

  • Chemical Industry: Concentrating and drying chemical substances, ensuring product quality and purity.

  • Food Processing: Treating wastewater from food processing, preserving the nutritional content and flavor of the food.

  • Pharmaceutical Industry: Drying and concentrating pharmaceuticals, ensuring the safety and efficacy of the products.

  • Landfill Leachate Treatment: Effectively managing leachate to prevent environmental contamination.

  • Oil and Gas Industry: Treating produced water and other wastewater streams, ensuring compliance with environmental regulations.

Comparative Analysis

Feature Disc Film Dryer Traditional Evaporators
Heat Transfer Efficiency High Moderate
Scalability Unlimited Limited
Energy Efficiency High Low
Versatility in Processing High Low
Space Requirement Low High
Maintenance Needs Low High

The Disc Film Dryer outperforms traditional evaporators in several key aspects, making it a preferred choice for modern wastewater treatment processes.

Conclusion

The Disc Film Dryer represents a significant advancement in wastewater treatment technology. Its efficient heat transfer mechanism, high-quality water production, corrosion-resistant construction, and low moisture content in final waste make it a sustainable and cost-effective solution. With its enhanced efficiency, scalability, energy conservation, high energy efficiency ratio, versatility in processing, and compact design, the Disc Film Dryer is poised to meet the growing demands of various industries in managing challenging wastewater streams.

For industries seeking an efficient, scalable, and sustainable solution for wastewater treatment, the Disc Film Dryer offers a compelling choice.
